Tracks, overhead electrical equipment and station infrastructure

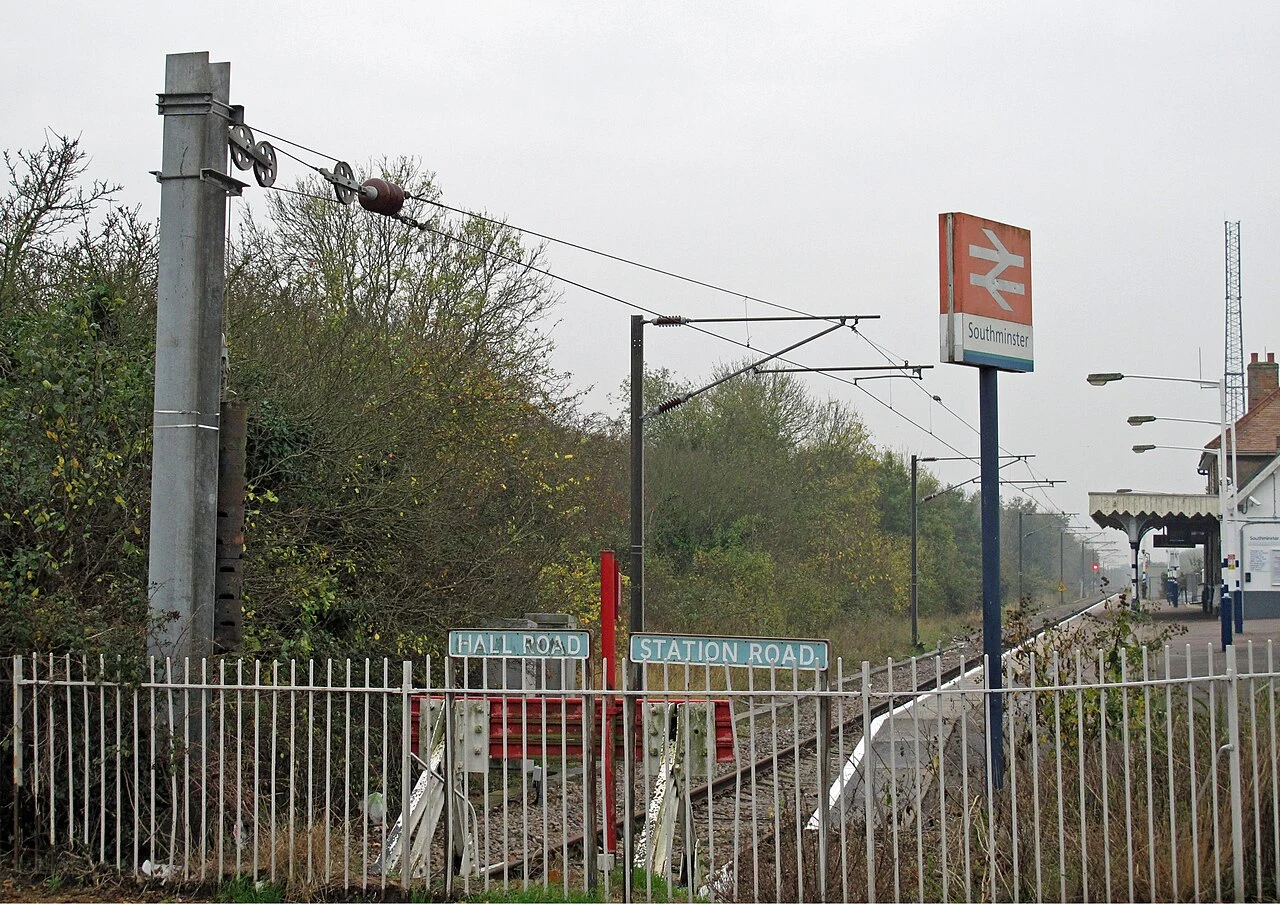

Railway-corridor photograph (application context). Roger Jones (resized/WebP) · CC BY-SA 2.0

Monitoring task and sensing route

Stable coupling makes comparable train passages easier to compare. Spare loops, stations and changes in cable routing need separate mapping.

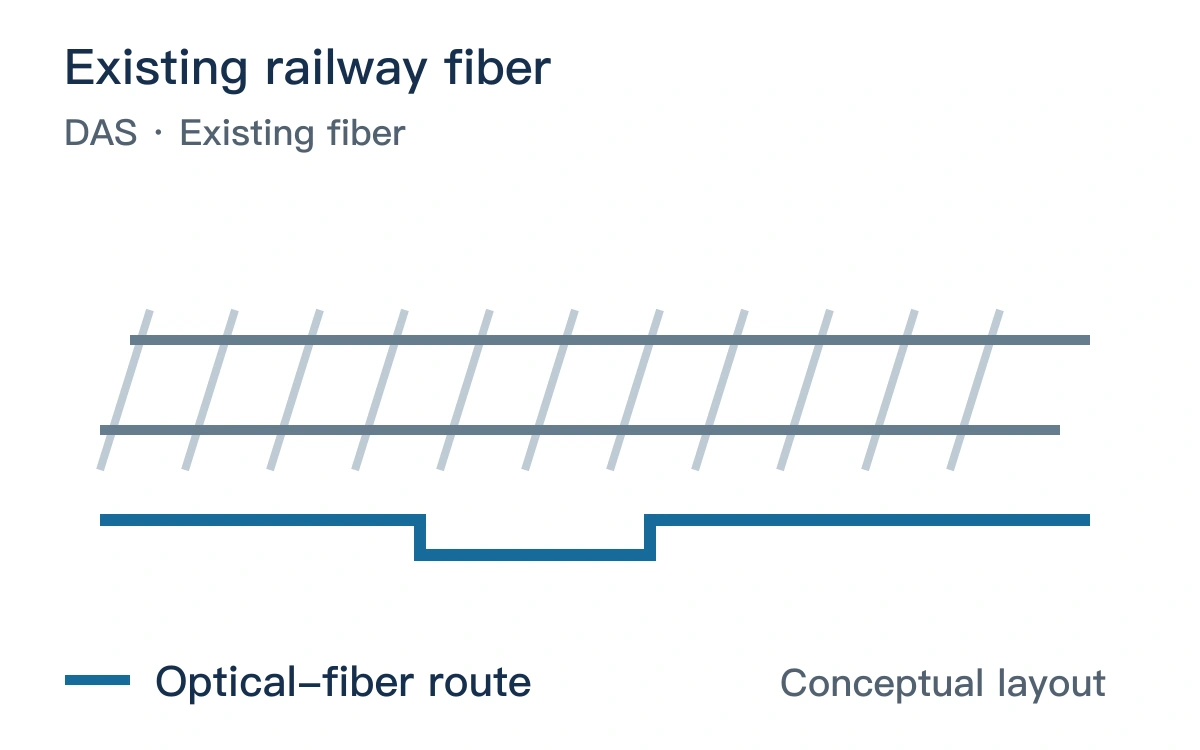

Original conceptual layout: Existing railway fiber and the optical-fiber route
Original OriginSense application concept showing observation relationships, not a customer installation.

Published research observation

Muñoz and colleagues used waveform repeatability and correlation on existing railway fiber to identify observation locations with better coupling and less interference. [1]

Research evidence and proposed validation
ItemDescription
Study settingExisting railway-fiber field records
Research observationRepeatable waveforms identify usable locations
Proposed comparisonMap splices, spare loops and route geometry, separating fiber distance from track chainage.

Validation and integration priorities

Compare records from similar trains and operating conditions across different dates.

Deliver usable sections alongside uncertain intervals and restrict downstream models to suitable observations.

Reference

[1] Muñoz F et al. Finding Well-Coupled Optical Fiber Locations for Railway Monitoring Using Distributed Acoustic Sensing. Sensors (Basel, Switzerland) (2023). DOI: 10.3390/s23146599.
